50 Ω impedance matching with a maximum frequency of 200 MHz. Features threaded connection on the air side with grounded shielding. Conductor diameter: 2.4 mm. Rated at 3 kV max, 5 A. Operates from -200°C to 300°C under UHV (<1×10⁻¹⁰ mbar). Minimum compatible flange is CF16; a CF40 flange accommodates up to 3 feedthroughs. Custom flange-feedthrough combinations and weldable versions are available. Optional vacuum-side and air-side connectors and cables are also available.

Features

 · N-type feedthrough with threaded connection on the air side.

 · 50 Ω impedance matching, maximum frequency of 200 MHz.

 · One unit fits on a CF16 flange; up to 3 units on a CF40 flange.

 · Optional connectors and cables available for both ends.

 · Custom flange and feedthrough configurations available upon request.

Parameters

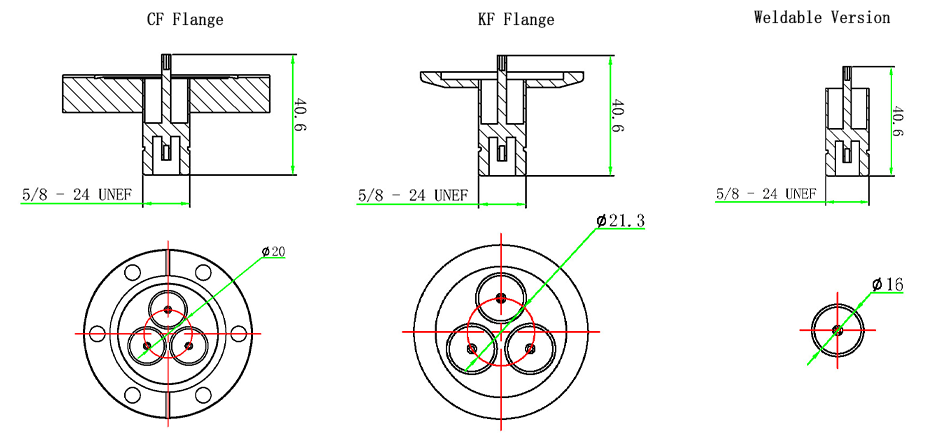

Dimensions
