Designed for high-density signal input in instrumentation applications, compatible with ultra-high vacuum. Available in 4, 6, 10, 20, or 35 pins following the MIL-C-5015 standard. Body made of stainless steel and ceramic; aluminum electrode with 1.4 mm diameter. Rated at 700 VDC max, 10 A per pin. Total current capacity: 28 A (4-pin), 36 A (6-pin), 50 A (10-pin), 75 A (20-pin), and 100 A (35-pin). Operating temperature: -200°C to 450°C; ultimate vacuum<1×10⁻¹⁰ mbar. Custom flange and pin-count combinations available; weldable versions also offered. Includes an air-side connector; optional vacuum-side connectors and cables available.

Features

 · Designed for high-density signal input in instrumentation applications.

 · Compatible with ultra-high vacuum (UHV).

 · Available in 4, 6, 10, 20, or 35-pin configurations.

 · Includes an air-side connector; optional vacuum-side connector available.

 · Custom flange and feedthrough configurations available upon request.

Parameters

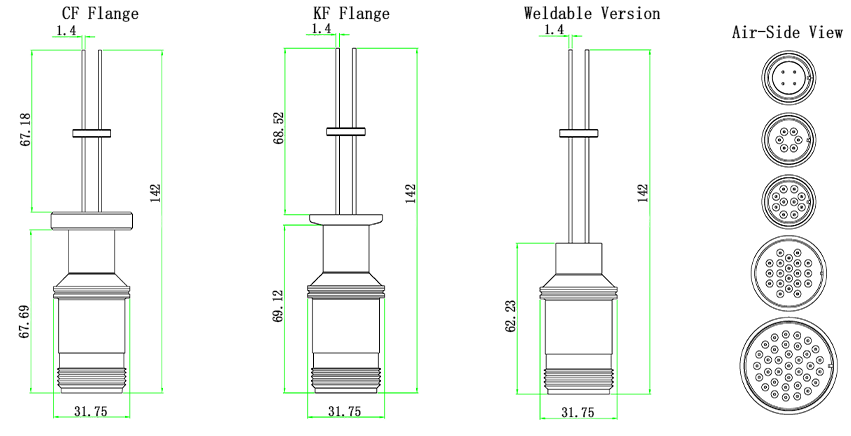

Dimensions
