Designed for high-density, high-voltage signal input in instrumentation applications, compatible with ultra-high vacuum. Features a 1.3 mm molybdenum (Mo) electrode, available in 2, 4, or 7-pin configurations following the MIL-C-5015 standard. Body is made of stainless steel and ceramic. Rated at 12 kV max, 7.5 A max per pin. Operating temperature ranges from -200°C to 450°C, with an ultimate vacuum of <1×10⁻¹⁰ mbar. Includes an air-side connector; optional vacuum-side connectors, pins, and vacuum cables are available. Custom flange and pin-count configurations can be provided upon request.

Features

 · Designed for high-density, high-voltage signal input in instrumentation applications.

 · Compatible with ultra-high vacuum (UHV).

 · Available in 2, 4, or 7-pin configurations.

 · Includes an air-side connector; optional vacuum-side connector available.

 · Custom flange and pin-count configurations available upon request.

Parameters

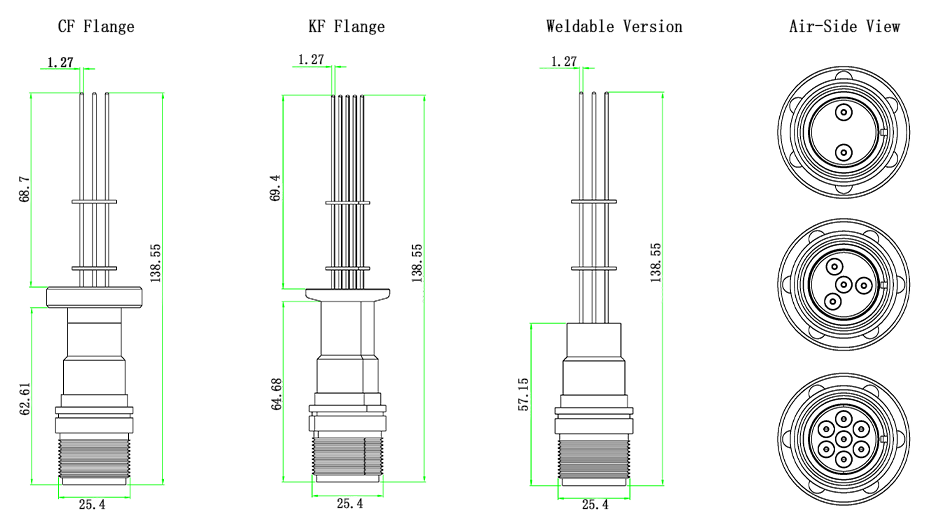

Dimensions
