The Power Plug-5KV feedthrough features a 2.4 mm electrode diameter. The body is made of stainless steel and ceramic, with electrode materials available in stainless steel, nickel, or copper. Rated at 5 kV max, with a maximum current of 25 A per pin for copper, 15 A for nickel, and 1 A for stainless steel. Operating temperature ranges from -200°C to 450°C, with an ultimate vacuum of <1×10⁻¹⁰ mbar. A CF16 flange accommodates 1 feedthrough, while a CF40 flange accommodates up to 4. Custom flange and feedthrough configurations are available upon request; weldable versions are also offered. Air-side connector cables are included, and optional vacuum-side connectors and cables are available.
Features
· Matching air-side connector and cable are included.
· One unit fits on a CF16 flange; up to 4 units on a CF40 flange.
· Electrode materials available: stainless steel, nickel, or copper.
· Optional connectors and cables available for both ends.
· Custom flange and feedthrough configurations available upon request.
Parameters
Specification |
Body Material | Stainless steel & Ceramic |
Conductor Material | Stainless Steel (SS), Nickel (Ni), Copper (Cu) |
Conductor Diameter | 2.4 mm |
Maximum Voltage | 5 KV DC |
Maximum Current | 25A max per pin (Cu) 15A max per pin (Ni) 1A max per pin (SS) |
Temperature Range | -200°C ~ 450°C |
Ultimate Vacuum | <1×10⁻¹⁰ mbar |
Leak Rate | <1×10⁻¹² Pa·m³/s (He) |

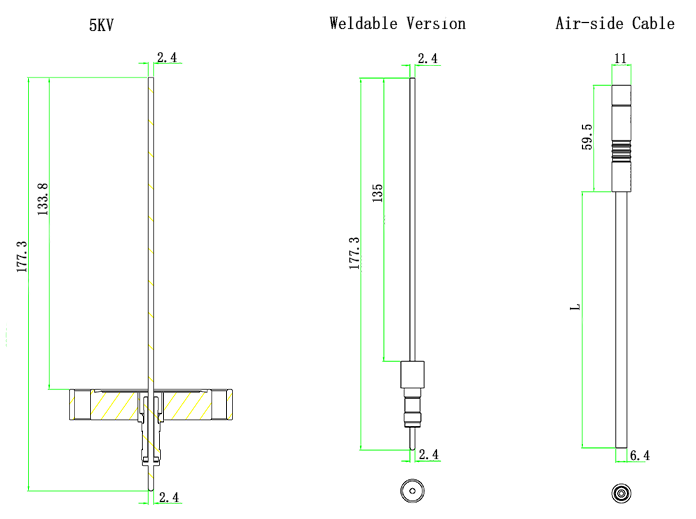

Dimensions
CF Flange Selection Table |
| Flange | Pin Count | Cu Electrode (25A max) | Ni Electrode (15A max) | SS Electrode (1A max) |
| CF16 | 1 | MT153-P24-025C5K-C16 | MT153-P24-015N5K-C16 | MT153-P24-001S5K-C16 |
| CF40 | 1 | MT153-P24-025C5K-C40 | MT153-P24-015N5K-C40 | MT153-P24-001S5K-C40 |
| CF40 | 2 | MT153-P24-025C5K-C40-2 | MT153-P24-015N5K-C40-2 | MT153-P24-001S5K-C40-2 |
| CF40 | 3 | MT153-P24-025C5K-C40-3 | MT153-P24-015N5K-C40-3 | MT153-P24-001S5K-C40-3 |
| CF40 | 4 | MT153-P24-025C5K-C40-4 | MT153-P24-015N5K-C40-4 | MT153-P24-001S5K-C40-4 |
KF Flange Selection Table |
| Flange | Pin Count | Cu Electrode (25A max) | Ni Electrode (15A max) | SS Electrode (1A max) |
| KF16 | 1 | MT153-P24-025C5K-K16 | MT153-P24-015N5K-K16 | MT153-P24-001S5K-K16 |
| KF40 | 1 | MT153-P24-025C5K-K40 | MT153-P24-015N5K-K40 | MT153-P24-001S5K-K40 |
| KF40 | 2 | MT153-P24-025C5K-K40-2 | MT153-P24-015N5K-K40-2 | MT153-P24-001S5K-K40-2 |
| KF40 | 3 | MT153-P24-025C5K-K40-3 | MT153-P24-015N5K-K40-3 | MT153-P24-001S5K-K40-3 |
| KF40 | 4 | MT153-P24-025C5K-K40-4 | MT153-P24-015N5K-K40-4 | MT153-P24-001S5K-K40-4 |
Note: For other flange and pin-count combinations, please contact us. |
Weldable Version Selection Table |
| Pin Count | Cu Electrode (25A max) | Ni Electrode (15A max) | SS Electrode (1A max) |
| 1 | MT153-P24-025C5K-WV | MT153-P24-015N5K-WV | MT153-P24-001S5K-WV |
Related Accessories |
Accessory | Model |
Air-side Cable | MT153-CAB-5K (default length: 2.4 m) |
Vacuum-side Connector | MT160-PISC-2.4 MT160-PPOC-2.4 |
Vacuum Cable | MT165-KAPM Series |
